RSP-XF
Anti-glare recessed spotlights with deep reflector design, UGR<17.5 options for comfortable office and retail lighting.
7 models in this series
FC-RSP-XF-1
| Power | 7W |
| Cut-out Size | Φ55mm |
| Outer Diameter | Φ64mm |
| Height | H76mm |
| CCT | 2700K/3000K/3500K/4000K/5000K/5700K/6500K |
| CRI | 90 |
| UGR | <17.5 |
| IP Rating | IP44 |
| Beam Angle | 15°/24°/30°/36°/38°/45°/55° |
| Dimming / Control | DT6+DT8 / SCR dimming |
Price on request. Contact us for a quotation.

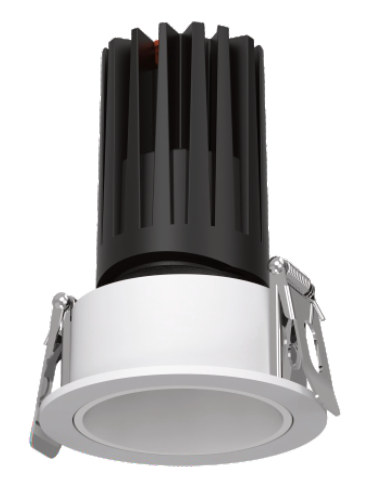

FC-RSP-XF-2
| Power | 9W |
| Cut-out Size | Φ55mm |
| Outer Diameter | Φ64mm |
| Height | H86mm |
| CCT | 2700K/3000K/3500K/4000K/5000K/5700K/6500K |
| CRI | 90 |
| UGR | <17.5 |
| IP Rating | IP44 |
| Beam Angle | 15°/24°/30°/36°/38°/45°/55° |
| Dimming / Control | DT6+DT8 / SCR dimming |
Price on request. Contact us for a quotation.

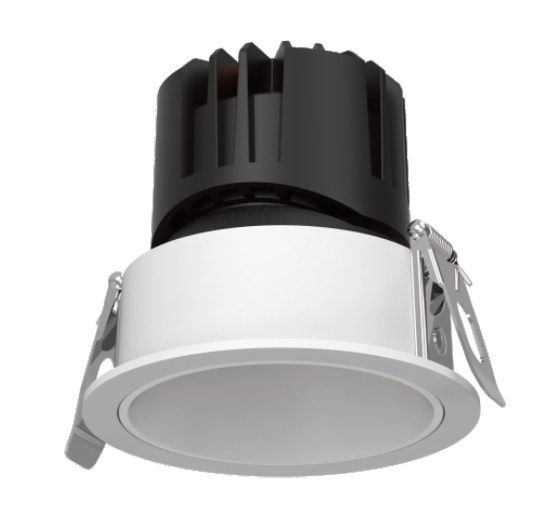

FC-RSP-XF-3
| Power | 8W |
| Cut-out Size | Φ75mm |
| Outer Diameter | Φ84mm |
| Height | H76mm |
| CCT | 2700K/3000K/3500K/4000K/5000K/5700K/6500K |
| CRI | 90 |
| UGR | <17.5 |
| IP Rating | IP44 |
| Beam Angle | 15°/24°/30°/36°/38°/45°/55° |
| Dimming / Control | DT6+DT8 / SCR dimming |
Price on request. Contact us for a quotation.

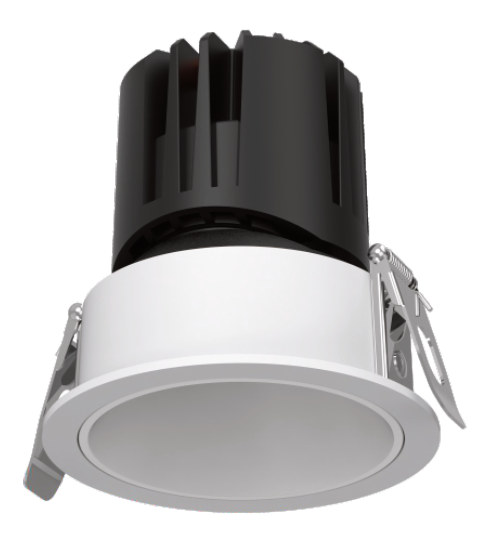

FC-RSP-XF-4
| Power | 12W |
| Cut-out Size | Φ75mm |
| Outer Diameter | Φ84mm |
| Height | H87mm |
| CCT | 2700K/3000K/3500K/4000K/5000K/5700K/6500K |
| CRI | 90 |
| UGR | <17.5 |
| IP Rating | IP44 |
| Beam Angle | 15°/24°/30°/36°/45°/55° |
| Dimming / Control | DT6+DT8 / SCR dimming |
Price on request. Contact us for a quotation.

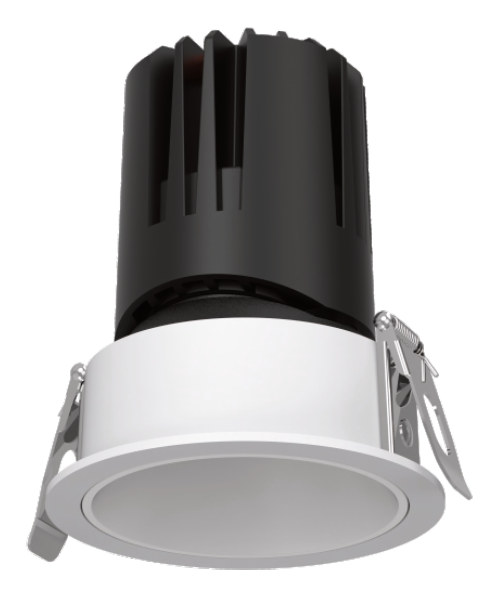

FC-RSP-XF-5
| Power | 15W |
| Cut-out Size | Φ75mm |
| Outer Diameter | Φ84mm |
| Height | H101mm |
| CCT | 2700K/3000K/3500K/4000K/5000K/5700K/6500K |
| CRI | 90 |
| UGR | <17.5 |
| IP Rating | IP44 |
| Beam Angle | 15°/24°/30°/36°/45°/55° |
| Dimming / Control | DT6+DT8 / SCR dimming |
Price on request. Contact us for a quotation.

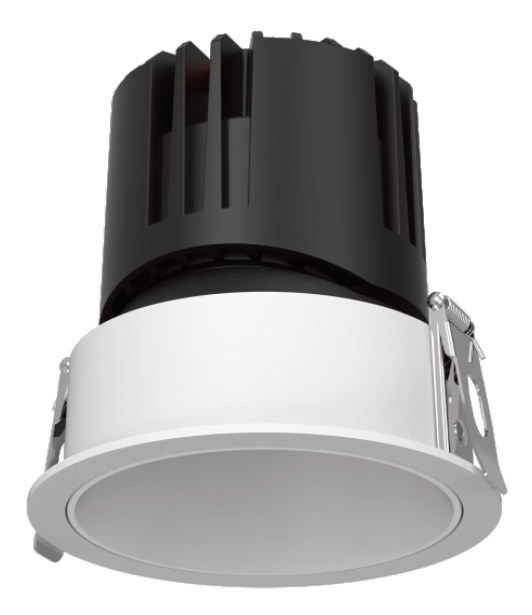

FC-RSP-XF-6
| Power | 20W |
| Cut-out Size | Φ95mm |
| Outer Diameter | Φ104mm |
| Height | H103mm |
| CCT | 2700K/3000K/3500K/4000K/5000K/5700K/6500K |
| CRI | 90 |
| UGR | <17.5 |
| IP Rating | IP44 |
| Beam Angle | 15°/24°/30°/36°/45°/55° |
| Dimming / Control | DT6+DT8 / SCR dimming |
Price on request. Contact us for a quotation.

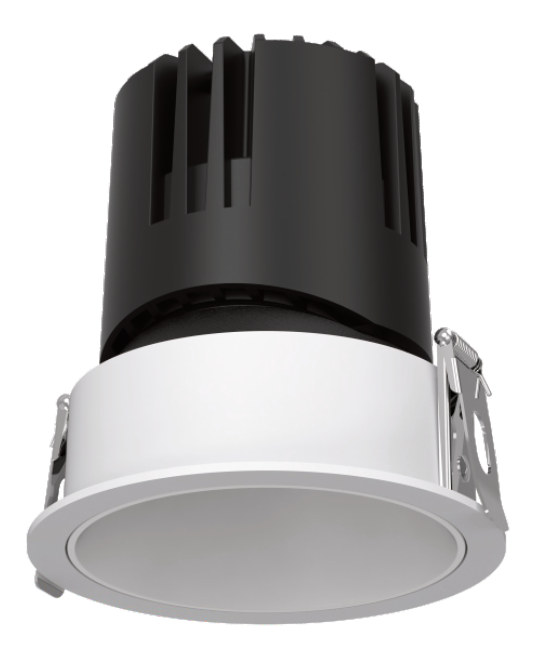

FC-RSP-XF-7
| Power | 25W |
| Cut-out Size | Φ95mm |
| Outer Diameter | Φ104mm |
| Height | H113mm |
| CCT | 2700K/3000K/3500K/4000K/5000K/5700K/6500K |
| CRI | 90 |
| UGR | <17.5 |
| IP Rating | IP44 |
| Beam Angle | 15°/24°/30°/36°/38°/45°/55° |
| Dimming / Control | DT6+DT8 / SCR dimming |
Price on request. Contact us for a quotation.
