RSP-DQ

Anti-glare recessed spotlights with deep reflector design, UGR<17.5 options for comfortable office and retail lighting.

6 models in this series

FC-RSP-DQ-1

Power	7W
Cut-out Size	Φ55mm
Outer Diameter	Φ64mm
Height	H60mm
CCT	2700K/3000K/3500K/4000K/5000K/5700K/6500K
CRI	90
UGR	<17.5
IP Rating	IP44
Beam Angle	15°/24°/30°/36°/45°/55°/60°
Dimming / Control	DT6+DT8 / SCR dimming

Add to Inquiry Price on request. Contact us for a quotation.

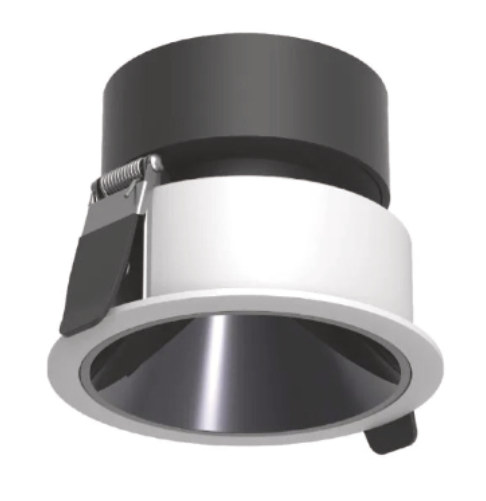

FC-RSP-DQ-2

Power	12W
Cut-out Size	Φ75mm
Outer Diameter	Φ84mm
Height	H63mm
CCT	2700K/3000K/3500K/4000K/5000K/5700K/6500K
CRI	90
UGR	<17.5
IP Rating	IP44
Beam Angle	15°/24°/30°/36°/38°/45°/55°
Dimming / Control	DT6+DT8 / SCR dimming

Add to Inquiry Price on request. Contact us for a quotation.

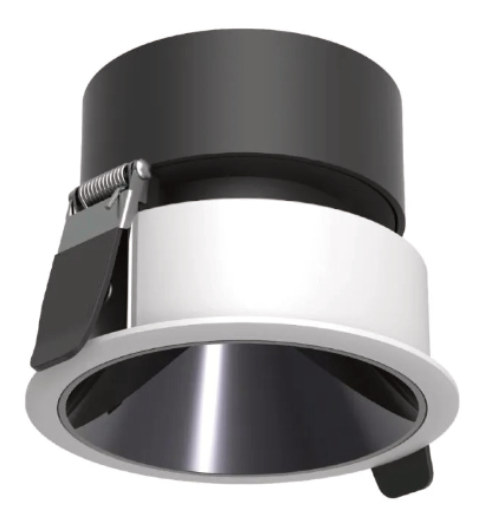

FC-RSP-DQ-3

Power	15W
Cut-out Size	Φ95mm
Outer Diameter	Φ104mm
Height	H80mm
CCT	2700K/3000K/3500K/4000K/5000K/5700K/6500K
CRI	90
UGR	<17.5
IP Rating	IP44
Beam Angle	15°/24°/30°/36°/45°/55°/60°
Dimming / Control	DT6+DT8 / SCR dimming

Add to Inquiry Price on request. Contact us for a quotation.

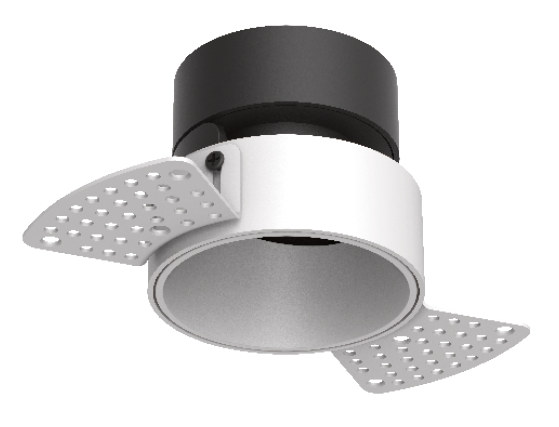

FC-RSP-DQ-4

Power	7W
Cut-out Size	Φ65mm
Outer Diameter	Φ110mm
Height	H60mm
CCT	2700K/3000K/3500K/4000K/5000K/5700K/6500K
CRI	90
UGR	<17.5
IP Rating	IP44
Beam Angle	15°/24°/30°/36°/38°/45°/55°
Dimming / Control	DT6+DT8 / SCR dimming

Add to Inquiry Price on request. Contact us for a quotation.

FC-RSP-DQ-5

Power	12W
Cut-out Size	Φ85mm
Outer Diameter	Φ145mm
Height	H63mm
CCT	2700K/3000K/3500K/4000K/5000K/5700K/6500K
CRI	90
UGR	<17.5
IP Rating	IP44
Beam Angle	15°/24°/30°/36°/45°/55°
Dimming / Control	DT6+DT8 / SCR dimming

Add to Inquiry Price on request. Contact us for a quotation.

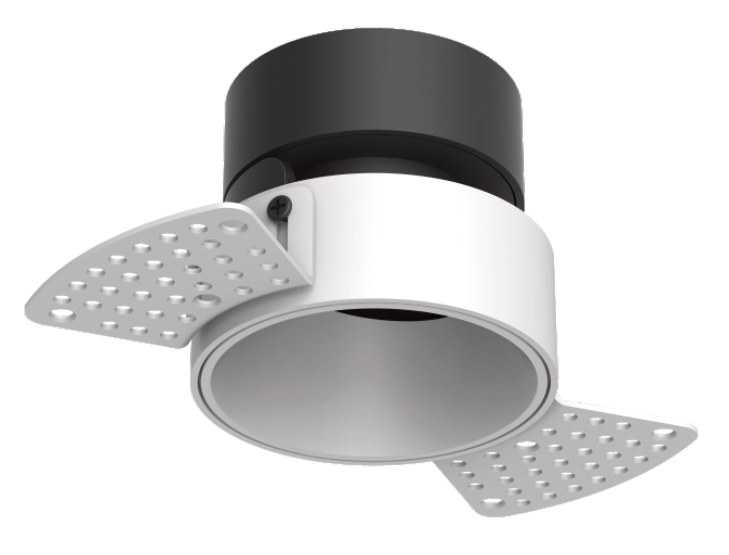

FC-RSP-DQ-6

Power	15W
Cut-out Size	Φ105mm
Outer Diameter	Φ172mm
Height	H80mm
CCT	2700K/3000K/3500K/4000K/5000K/5700K/6500K
CRI	90
UGR	<17.5
IP Rating	IP44
Beam Angle	15°/24°/30°/36°/45°/55°
Dimming / Control	DT6+DT8 / SCR dimming

Add to Inquiry Price on request. Contact us for a quotation.
