RSP-LX

Anti-glare recessed spotlights with deep reflector design, UGR<17.5 options for comfortable office and retail lighting.

12 models in this series

FC-RSP-LX-1

Power	2W
Cut-out Size	38×38mm
Dimensions	46×46mm
Height	H52mm
CCT	2700K/3000K/3500K/4000K/5000K/5700K/6500K
CRI	90
UGR	<17.5
IP Rating	IP44
Beam Angle	15°/24°/38°/45°
Dimming / Control	DT6+DT8 / SCR dimming
LED Type	SMD

Add to Inquiry Price on request. Contact us for a quotation.

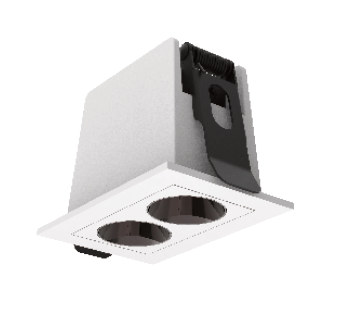

FC-RSP-LX-2

Power	4W
Cut-out Size	60×35mm
Dimensions	69×46mm
Height	H52mm
CCT	2700K/3000K/3500K/4000K/5000K/5700K/6500K
CRI	90
UGR	<17.5
IP Rating	IP44
Beam Angle	15°/24°/38°/45°
Dimming / Control	DT6+DT8 / SCR dimming
LED Type	SMD

Add to Inquiry Price on request. Contact us for a quotation.

FC-RSP-LX-3

Power	5W
Cut-out Size	88×35mm
Dimensions	96×46mm
Height	H52mm
CCT	2700K/3000K/3500K/4000K/5000K/5700K/6500K
CRI	90
UGR	<17.5
IP Rating	IP44
Beam Angle	15°/24°/38°/45°
Dimming / Control	DT6+DT8 / SCR dimming
LED Type	SMD

Add to Inquiry Price on request. Contact us for a quotation.

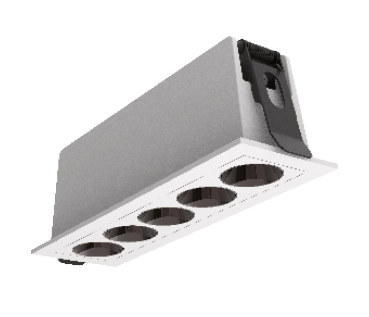

FC-RSP-LX-4

Power	10W
Cut-out Size	140×35mm
Dimensions	148×46mm
Height	H52mm
CCT	2700K/3000K/3500K/4000K/5000K/5700K/6500K
CRI	90
UGR	<17.5
IP Rating	IP44
Beam Angle	15°/24°/38°/45°
Dimming / Control	DT6+DT8 / SCR dimming
LED Type	SMD

Add to Inquiry Price on request. Contact us for a quotation.

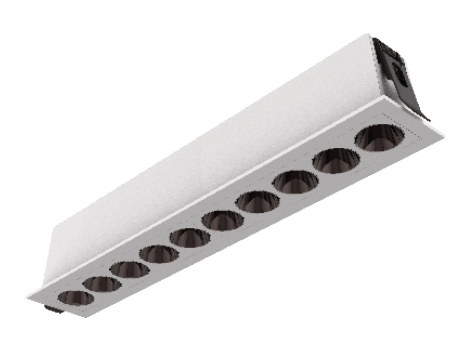

FC-RSP-LX-5

Power	20W
Cut-out Size	270×35mm
Dimensions	280×46mm
Height	H52mm
CCT	2700K/3000K/3500K/4000K/5000K/5700K/6500K
CRI	90
UGR	<17.5
IP Rating	IP44
Beam Angle	15°/24°/38°/45°
Dimming / Control	DT6+DT8 / SCR dimming
LED Type	SMD

Add to Inquiry Price on request. Contact us for a quotation.

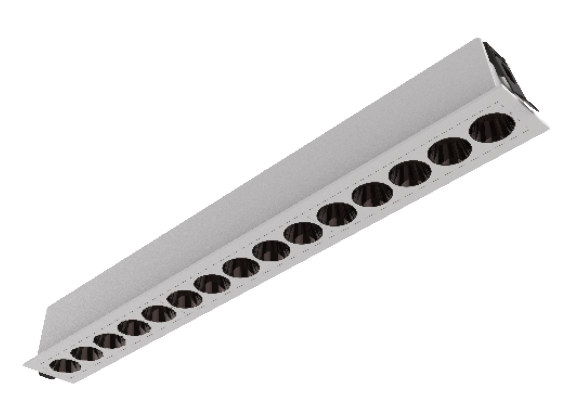

FC-RSP-LX-6

Power	30W
Cut-out Size	408×35mm
Dimensions	417×46mm
Height	H52mm
CCT	2700K/3000K/3500K/4000K/5000K/5700K/6500K
CRI	90
UGR	<17.5
IP Rating	IP44
Beam Angle	15°/24°/38°/45°
Dimming / Control	DT6+DT8 / SCR dimming
LED Type	SMD

Add to Inquiry Price on request. Contact us for a quotation.

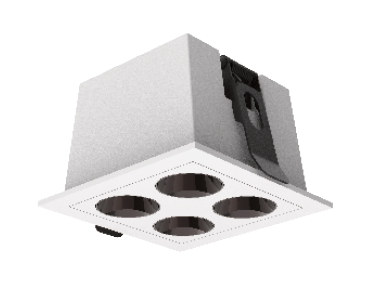

FC-RSP-LX-7

Power	7W
Cut-out Size	68×68mm
Dimensions	76×76mm
Height	H52mm
CCT	2700K/3000K/3500K/4000K/5000K/5700K/6500K
CRI	90
UGR	<17.5
IP Rating	IP44
Beam Angle	15°/24°/38°/45°
Dimming / Control	DT6+DT8 / SCR dimming
LED Type	SMD

Add to Inquiry Price on request. Contact us for a quotation.

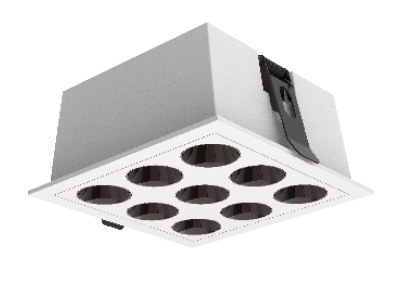

FC-RSP-LX-8

Power	15W
Cut-out Size	98×98mm
Dimensions	106×106mm
Height	H52mm
CCT	2700K/3000K/3500K/4000K/5000K/5700K/6500K
CRI	90
UGR	<17.5
IP Rating	IP44
Beam Angle	15°/24°/38°/45°
Dimming / Control	DT6+DT8 / SCR dimming
LED Type	SMD

Add to Inquiry Price on request. Contact us for a quotation.

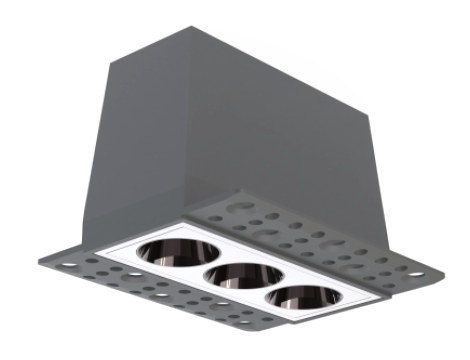

FC-RSP-LX-9

Power	5W
Cut-out Size	95×46mm
Dimensions	93×83mm
Height	H64mm
CCT	2700K/3000K/3500K/4000K/5000K/5700K/6500K
CRI	90
UGR	<17.5
IP Rating	IP44
Beam Angle	15°/24°/38°/45°
Dimming / Control	DT6+DT8 / SCR dimming
LED Type	SMD

Add to Inquiry Price on request. Contact us for a quotation.

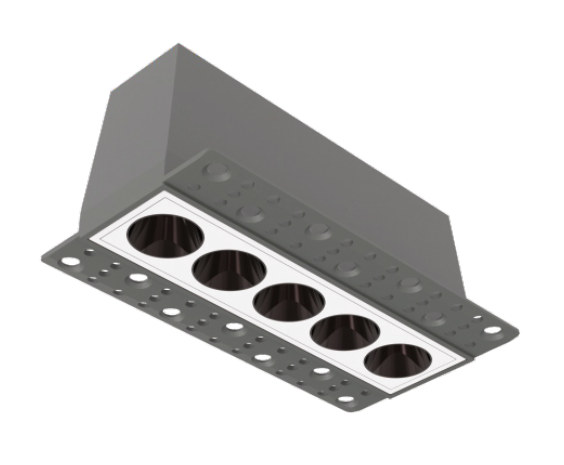

FC-RSP-LX-10

Power	10W
Cut-out Size	148×46mm
Dimensions	146×83mm
Height	H64mm
CCT	2700K/3000K/3500K/4000K/5000K/5700K/6500K
CRI	90
UGR	<17.5
IP Rating	IP44
Beam Angle	15°/24°/38°/45°
Dimming / Control	DT6+DT8 / SCR dimming
LED Type	SMD

Add to Inquiry Price on request. Contact us for a quotation.

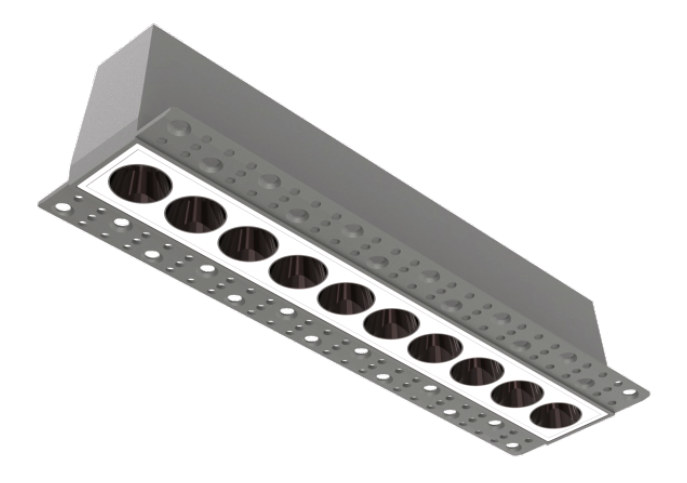

FC-RSP-LX-11

Power	20W
Cut-out Size	280×46mm
Dimensions	278×83mm
Height	H64mm
CCT	2700K/3000K/3500K/4000K/5000K/5700K/6500K
CRI	90
UGR	<17.5
IP Rating	IP44
Beam Angle	15°/24°/38°/45°
Dimming / Control	DT6+DT8 / SCR dimming
LED Type	SMD

Add to Inquiry Price on request. Contact us for a quotation.

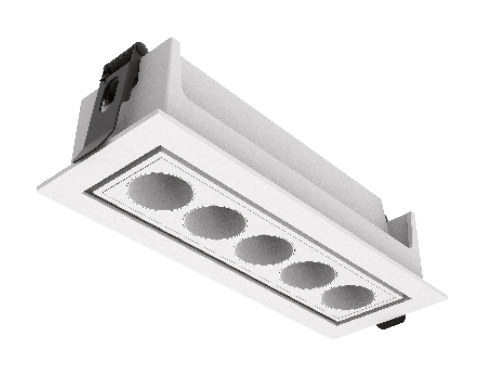

FC-RSP-LX-13

Power	10W
Cut-out Size	155×55mm
Dimensions	162×62mm
Height	H50mm
CCT	2700K/3000K/3500K/4000K/5000K/5700K/6500K
CRI	90
UGR	<17.5
IP Rating	IP44
Beam Angle	15°/24°/38°/45°
Dimming / Control	DT6+DT8 / SCR dimming
LED Type	SMD

Add to Inquiry Price on request. Contact us for a quotation.
