RSD-YL
Recessed LED downlights for offices, hotels and commercial spaces, with high CRI and multiple beam angles.
3 models in this series
FC-RSD-YL-1
| Power | 12W |
| Cut-out Size | Φ75mm |
| Outer Diameter | Φ108mm |
| Height | H65mm |
| CCT | 2700K/3000K/3500K/4000K/5000K/5700K/6500K |
| CRI | 90 |
| UGR | <16 |
| Beam Angle | 15°/24°/38°/45°/60° |
| Dimming / Control | DT6+DT8 / SCR dimming |
Price on request. Contact us for a quotation.

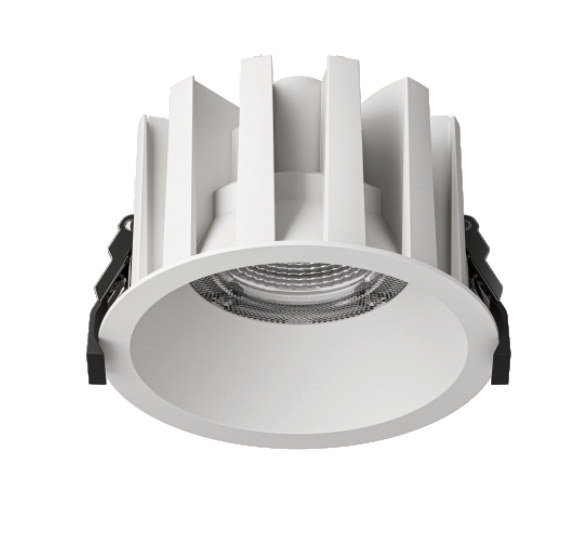

FC-RSD-YL-2
| Power | 30W |
| Cut-out Size | Φ125mm |
| Outer Diameter | Φ160mm |
| Height | H88mm |
| CCT | 2700K/3000K/3500K/4000K/5000K/5700K/6500K |
| CRI | 90 |
| UGR | <16 |
| Beam Angle | 15°/24°/38°/45°/60° |
| Dimming / Control | DT6+DT8 / SCR dimming |
Price on request. Contact us for a quotation.

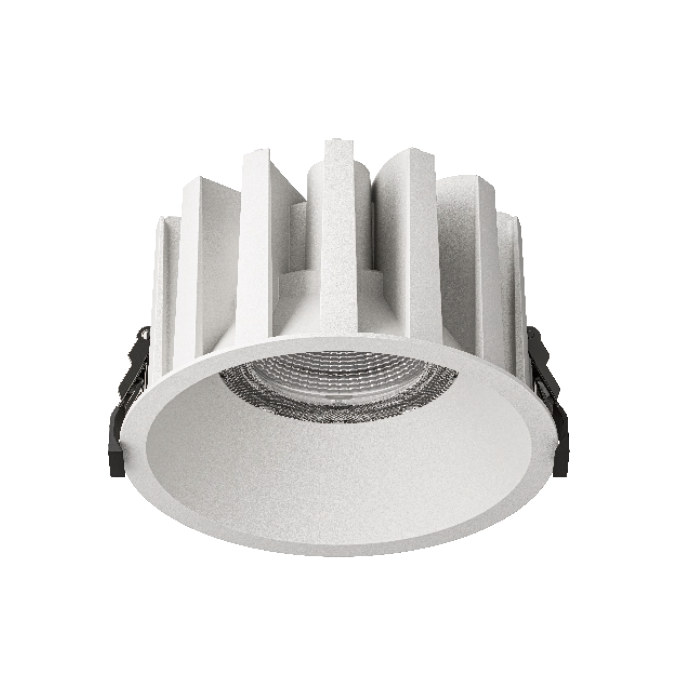

FC-RSD-YL-3
| Power | 40W |
| Cut-out Size | Φ165mm |
| Outer Diameter | Φ220mm |
| Height | H109mm |
| CCT | 2700K/3000K/3500K/4000K/5000K/5700K/6500K |
| CRI | 90 |
| UGR | <16 |
| Beam Angle | 15°/24°/38°/45°/60° |
| Dimming / Control | DT6+DT8 / SCR dimming |
Price on request. Contact us for a quotation.
