RSD-TH
Recessed LED downlights for offices, hotels and commercial spaces, with high CRI and multiple beam angles.
5 models in this series
FC-RSD-TH-1
| Power | 15W |
| Cut-out Size | Φ75mm |
| Outer Diameter | Φ106mm |
| Height | H64mm |
| CCT | 2700K/3000K/3500K/4000K/5000K/5700K/6500K |
| CRI | 90 |
| UGR | <17 |
| IP Rating | IP44 |
| Beam Angle | 15°/24°/36°/45°/90° |
| Dimming / Control | DT6+DT8 / SCR dimming |
| LED Type | SMD |
Price on request. Contact us for a quotation.

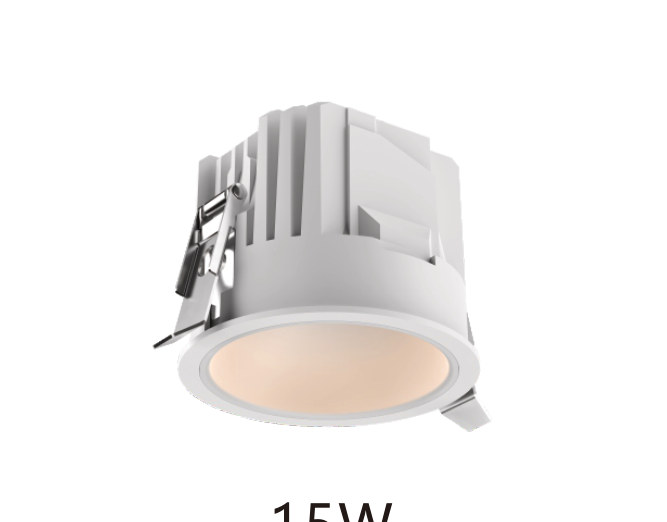

FC-RSD-TH-2
| Power | 15W |
| Cut-out Size | Φ75mm |
| Outer Diameter | Φ84mm |
| Height | H64mm |
| CCT | 2700K/3000K/3500K/4000K/5000K/5700K/6500K |
| CRI | 90 |
| UGR | <17 |
| IP Rating | IP44 |
| Beam Angle | 15°/24°/36°/45°/90° |
| Dimming / Control | DT6+DT8 / SCR dimming |
| LED Type | SMD |
Price on request. Contact us for a quotation.

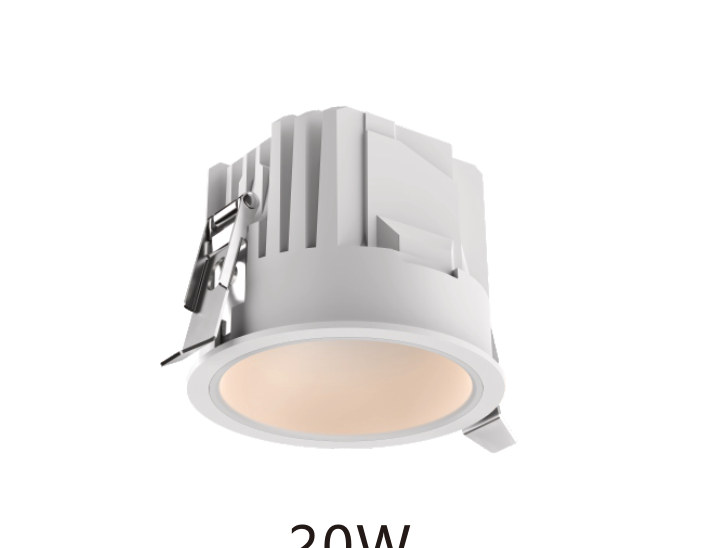

FC-RSD-TH-3
| Power | 20W |
| Cut-out Size | Φ95mm |
| Outer Diameter | Φ106mm |
| Height | H68mm |
| CCT | 2700K/3000K/3500K/4000K/5000K/5700K/6500K |
| CRI | 90 |
| UGR | <17 |
| IP Rating | IP44 |
| Beam Angle | 15°/24°/36°/45°/90° |
| Dimming / Control | DT6+DT8 / SCR dimming |
| LED Type | SMD |
Price on request. Contact us for a quotation.
FC-RSD-TH-4
| Power | 30W |
| Cut-out Size | Φ125mm |
| Outer Diameter | Φ140mm |
| Height | H81mm |
| CCT | 2700K/3000K/3500K/4000K/5000K/5700K/6500K |
| CRI | 90 |
| UGR | <17 |
| IP Rating | IP44 |
| Beam Angle | 15°/24°/36°/45°/90° |
| Dimming / Control | DT6+DT8 / SCR dimming |
| LED Type | SMD |
Price on request. Contact us for a quotation.

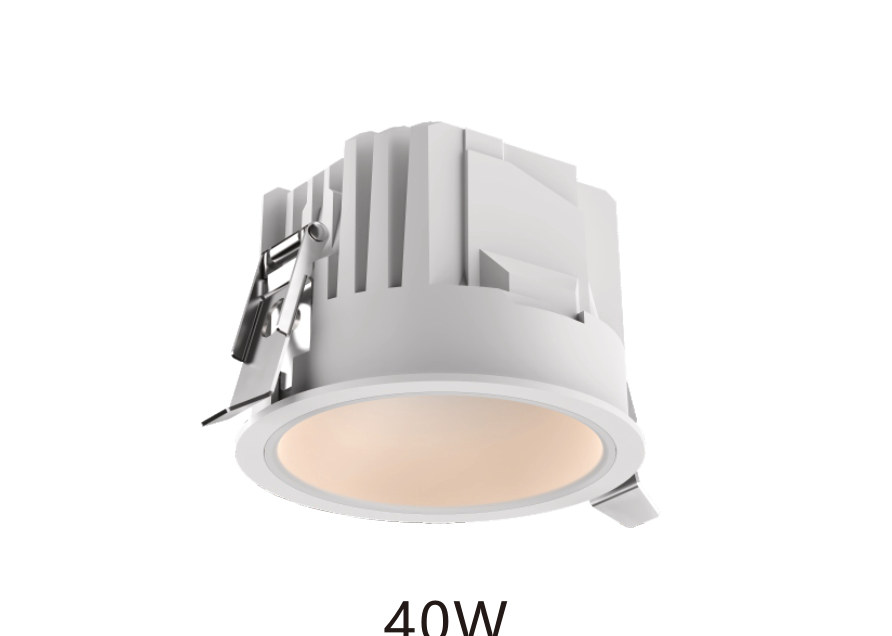

FC-RSD-TH-5
| Power | 40W |
| Cut-out Size | Φ145mm |
| Outer Diameter | Φ170mm |
| Height | H81mm |
| CCT | 2700K/3000K/3500K/4000K/5000K/5700K/6500K |
| CRI | 90 |
| UGR | <17 |
| IP Rating | IP44 |
| Beam Angle | 15°/24°/36°/45°/90° |
| Dimming / Control | DT6+DT8 / SCR dimming |
| LED Type | SMD |
Price on request. Contact us for a quotation.
