RSD-TK
Recessed LED downlights for offices, hotels and commercial spaces, with high CRI and multiple beam angles.
10 models in this series
FC-RSD-TK-1
| Power | 10W |
| Cut-out Size | Φ75mm |
| Outer Diameter | Φ84mm |
| Height | H42mm |
| CCT | 2700K/3000K/3500K/4000K/5000K/5700K/6500K |
| CRI | 90 |
| UGR | <30 |
| IP Rating | IP44 |
| Beam Angle | 45°/120° |
| Dimming / Control | DT6+DT8 / SCR dimming |
| LED Type | SMD |
Price on request. Contact us for a quotation.
FC-RSD-TK-2
| Power | 12W |
| Cut-out Size | Φ80mm |
| Outer Diameter | Φ90mm |
| Height | H42mm |
| CCT | 2700K/3000K/3500K/4000K/5000K/5700K/6500K |
| CRI | 90 |
| UGR | <30 |
| IP Rating | IP44 |
| Beam Angle | 45°/120° |
| Dimming / Control | DT6+DT8 / SCR dimming |
| LED Type | SMD |
Price on request. Contact us for a quotation.

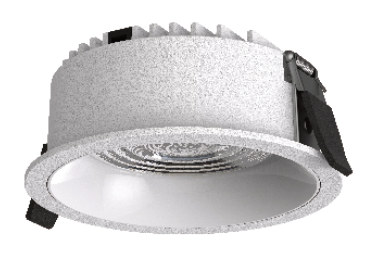

FC-RSD-TK-3
| Power | 15W |
| Cut-out Size | Φ95mm |
| Outer Diameter | Φ105mm |
| Height | H42mm |
| CCT | 2700K/3000K/3500K/4000K/5000K/5700K/6500K |
| CRI | 90 |
| UGR | <30 |
| IP Rating | IP44 |
| Beam Angle | 45°/120° |
| Dimming / Control | DT6+DT8 / SCR dimming |
| LED Type | SMD |
Price on request. Contact us for a quotation.

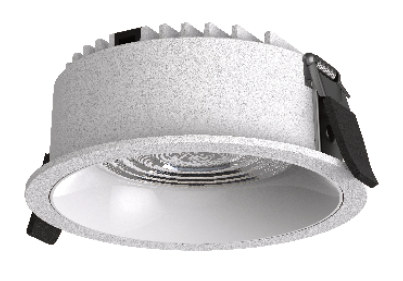

FC-RSD-TK-4
| Power | 18W |
| Cut-out Size | Φ120mm |
| Outer Diameter | Φ130mm |
| Height | H46mm |
| CCT | 2700K/3000K/3500K/4000K/5000K/5700K/6500K |
| CRI | 90 |
| UGR | <30 |
| IP Rating | IP44 |
| Beam Angle | 45°/120° |
| Dimming / Control | DT6+DT8 / SCR dimming |
| LED Type | SMD |
Price on request. Contact us for a quotation.

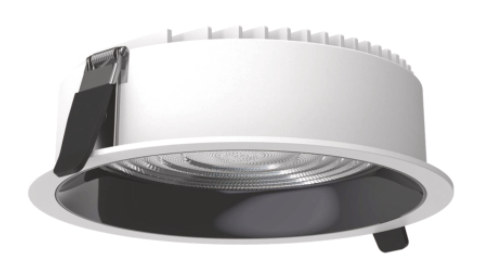

FC-RSD-TK-5
| Power | 24W |
| Cut-out Size | Φ140mm |
| Outer Diameter | Φ155mm |
| Height | H46mm |
| CCT | 2700K/3000K/3500K/4000K/5000K/5700K/6500K |
| CRI | 90 |
| UGR | <30 |
| IP Rating | IP44 |
| Beam Angle | 45°/120° |
| Dimming / Control | DT6+DT8 / SCR dimming |
| LED Type | SMD |
Price on request. Contact us for a quotation.

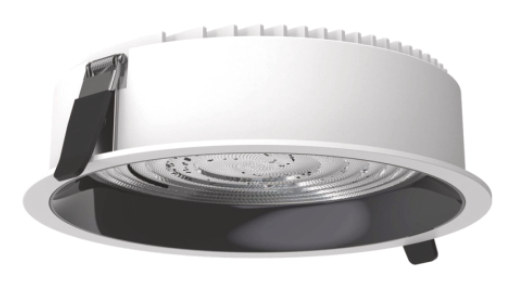

FC-RSD-TK-6
| Power | 35W |
| Cut-out Size | Φ160mm |
| Outer Diameter | Φ175mm |
| Height | H49mm |
| CCT | 2700K/3000K/3500K/4000K/5000K/5700K/6500K |
| CRI | 90 |
| UGR | <30 |
| IP Rating | IP44 |
| Beam Angle | 45°/120° |
| Dimming / Control | DT6+DT8 / SCR dimming |
| LED Type | SMD |
Price on request. Contact us for a quotation.

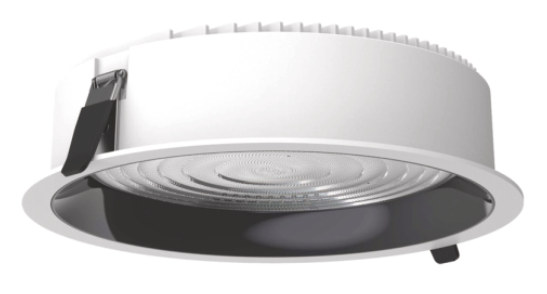

FC-RSD-TK-7
| Power | 50W |
| Cut-out Size | Φ200mm |
| Outer Diameter | Φ220mm |
| Height | H56mm |
| CCT | 2700K/3000K/3500K/4000K/5000K/5700K/6500K |
| CRI | 90 |
| UGR | <30 |
| IP Rating | IP44 |
| Beam Angle | 45°/120° |
| Dimming / Control | DT6+DT8 / SCR dimming |
| LED Type | SMD |
Price on request. Contact us for a quotation.
FC-RSD-TK-8
| Power | 60W |
| Cut-out Size | Φ220mm |
| Outer Diameter | Φ240mm |
| Height | H56mm |
| CCT | 2700K/3000K/3500K/4000K/5000K/5700K/6500K |
| CRI | 90 |
| UGR | <30 |
| IP Rating | IP44 |
| Beam Angle | 45°/120° |
| Dimming / Control | DT6+DT8 / SCR dimming |
| LED Type | SMD |
Price on request. Contact us for a quotation.
FC-RSD-TK-9
| Power | 70W |
| Cut-out Size | Φ240mm |
| Outer Diameter | Φ270mm |
| Height | H56mm |
| CCT | 2700K/3000K/3500K/4000K/5000K/5700K/6500K |
| CRI | 90 |
| UGR | <30 |
| IP Rating | IP44 |
| Beam Angle | 45°/120° |
| Dimming / Control | DT6+DT8 / SCR dimming |
| LED Type | SMD |
Price on request. Contact us for a quotation.

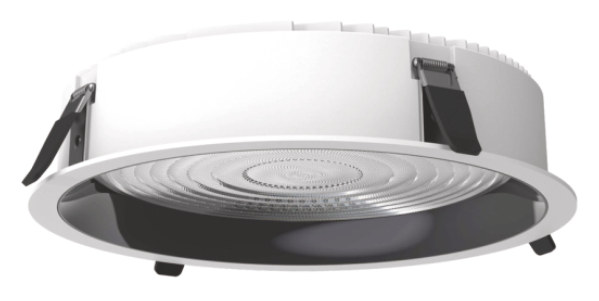

FC-RSD-TK-10
| Power | 90W |
| Cut-out Size | Φ260mm |
| Outer Diameter | Φ290mm |
| Height | H56mm |
| CCT | 2700K/3000K/3500K/4000K/5000K/5700K/6500K |
| CRI | 90 |
| UGR | <30 |
| IP Rating | IP44 |
| Beam Angle | 45°/120° |
| Dimming / Control | DT6+DT8 / SCR dimming |
| LED Type | SMD |
Price on request. Contact us for a quotation.
