MSD-YG
Surface-mounted downlights for concrete ceilings and retrofit projects, no ceiling cut-out required.
5 models in this series
FC-MSD-YG-1
| Power | 7W |
| Outer Diameter | Φ54mm |
| Height | H80mm |
| CCT | 2700K/3000K/3500K/4000K/5000K/5700K/6500K |
| CRI | 90 |
| UGR | <17.5 |
| IP Rating | IP44 |
| Beam Angle | 45°/60° |
| Dimming / Control | DT6+DT8 / SCR dimming |
Price on request. Contact us for a quotation.

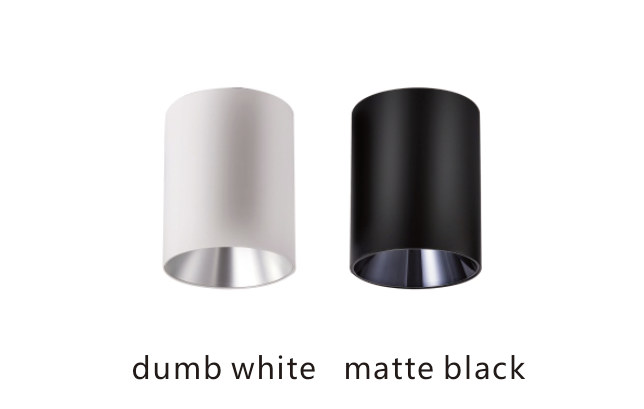

FC-MSD-YG-2
| Power | 12W |
| Outer Diameter | Φ74mm |
| Height | H100mm |
| CCT | 2700K/3000K/3500K/4000K/5000K/5700K/6500K |
| CRI | 90 |
| UGR | <17.5 |
| IP Rating | IP44 |
| Beam Angle | 45°/60° |
| Dimming / Control | DT6+DT8 / SCR dimming |
Price on request. Contact us for a quotation.

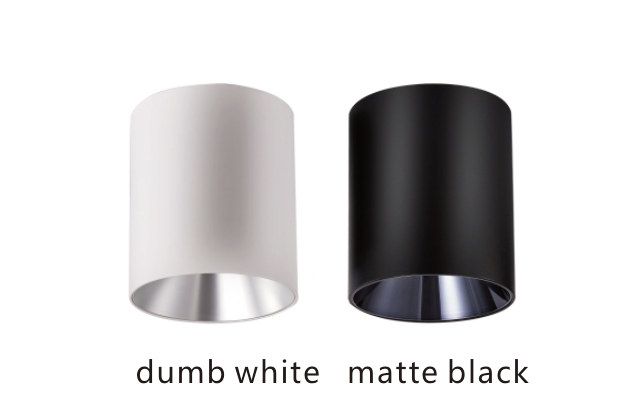

FC-MSD-YG-3
| Power | 20W |
| Outer Diameter | Φ94mm |
| Height | H110mm |
| CCT | 2700K/3000K/3500K/4000K/5000K/5700K/6500K |
| CRI | 90 |
| UGR | <17.5 |
| IP Rating | IP44 |
| Beam Angle | 45°/60° |
| Dimming / Control | DT6+DT8 / SCR dimming |
Price on request. Contact us for a quotation.
FC-MSD-YG-4
| Power | 30W |
| Outer Diameter | Φ114mm |
| Height | H140mm |
| CCT | 2700K/3000K/3500K/4000K/5000K/5700K/6500K |
| CRI | 90 |
| UGR | <17.5 |
| IP Rating | IP44 |
| Beam Angle | 45°/60° |
| Dimming / Control | DT6+DT8 / SCR dimming |
Price on request. Contact us for a quotation.

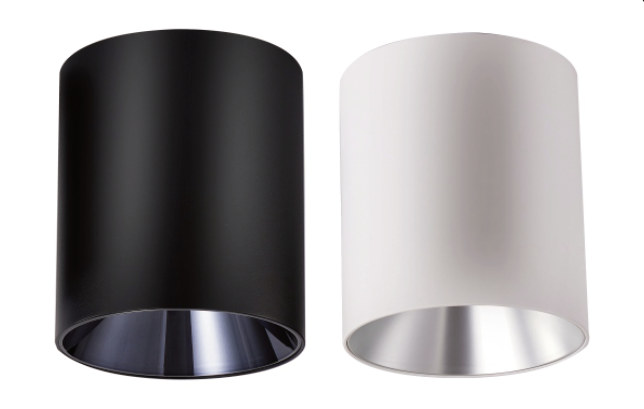

FC-MSD-YG-5
| Power | 40W |
| Outer Diameter | Φ140mm |
| Height | H165mm |
| CCT | 2700K/3000K/3500K/4000K/5000K/5700K/6500K |
| CRI | 90 |
| UGR | <17.5 |
| IP Rating | IP44 |
| Beam Angle | 45°/60° |
| Dimming / Control | DT6+DT8 / SCR dimming |
Price on request. Contact us for a quotation.
